QSC TouchMix-16 22-channel Touchscreen Digital Mixer

QSC TouchMix-16 22-channel Touchscreen Digital Mixer
20-channel Digital Mixer with Touchscreen Interface, 12 Mic Inputs, 4 Mic/Line Combo Inputs, 2 Stereo Line Inputs, Built-in FX, and Remote Control via Wi-Fi

• Capacitive touchscreen offers a wealth of on-screen information while also providing confident hands-on control
• 120 presets provide real-world live sound settings for commonly-used instruments and microphones (see Presets Listing under Resources / Support)
• Simple and Advanced modes offer either basic or comprehensive controls
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Real-time analyzer (RTA) provides instantaneous display of channel tonal balance and room response
• 10 Aux mixes provide superior monitor configuration capabilities
• 22-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
• MP3 playback direct from USB
• On-board multi-language user guide
• Download future upgrades directly from the Internet

• Type:Digital
• Channels:22
• Inputs - Mic Preamps:4 x XLR-1/4" combo, 12 x XLR
• Phantom Power:16 x Channels
• Inputs - Line:2 x 1/4" TRS (stereo inputs)
• Inputs - Other:Stereo USB / MP3 playback

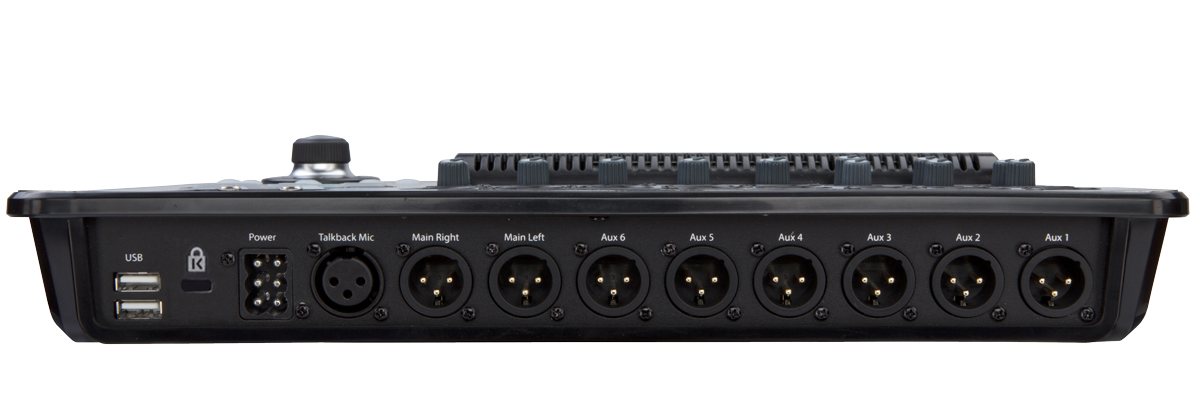

• Outputs - Main:2 x XLR
• Outputs - Other:6 x XLR (aux), 2 x 1/4" TRS (stereo aux out)
• Aux Sends:8 x External, 4 x Internal (FX)
• Busses/Groups:8 x DCA Groups (With Mute), 8 x Mute Groups
• Talkback:Yes, 1 x XLR
• Computer Connectivity:2 x USB Type A (one reserved for Wi-Fi plug)
• Headphones:2 x 1/4"
• EQ Bands:4-band Parametric (Per Channel), 1/3-octave Graphic (Main/Aux Outputs)
• Effects:Reverb, Chorus, Delay, Echo, Pitch Correct
• Screen:Color Touch Screen
• Rackmountable:Yes (kit sold separately)
• Height:2.3"
• Depth:11.5"
• Width:14.2"
  • Weight:5.9 lbs.
