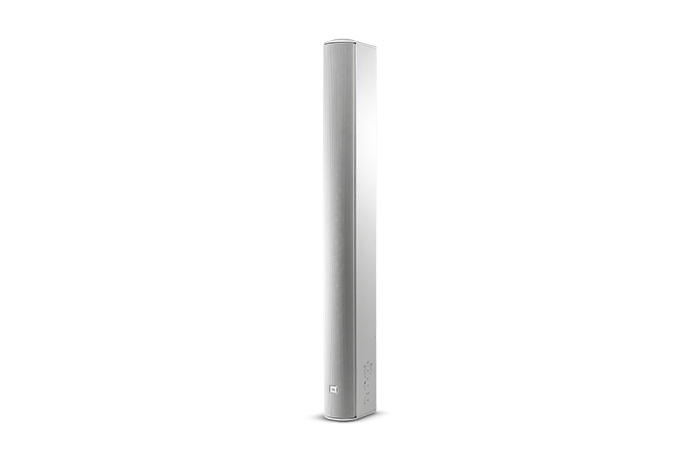

JBL CBT 100LA-1

JBL CBT 100LA-1, loa cột array, nghe nhạc, hội trường, nhà thờ
120W, 60W, 30W (15W at 70V only), 8Ohm /325 W

Constant Beamwidth Technology™ Line Array Column Loudspeaker

• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
• long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection
• Swivel (pan)/tilt wall bracket included.
• Built-in 70V/100V transformer, plus 8 ohm direct capability.

• Drivers Sixteen 50 mm (2 in) Full-Range
• Frequency Response (-10dB) 80 Hz – 20 kHz
• Coverage Angle Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°)Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
• Sensitivity Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
• Impedance 8 ohms (in Thru mode)
• Power Rating 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
• Maximum SPL (1m) Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
• Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
• Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
•
• Dimensions (H x W x D) 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
• Net Weight 7.2 kg (15.8 lb)
• Included Accessories Swivel (pan) / tilt wall bracket
