Loa cột 60 W Electrovoice LRC-1060

Loa cột 60 W Electrovoice LRC-1060

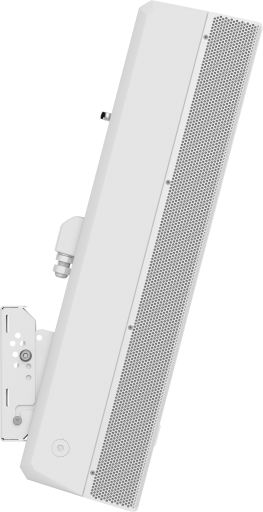

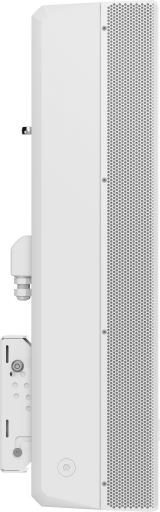

Column speaker, 0.6m, EN54

• 22.8” (580 mm) high

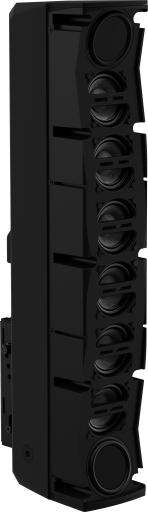

• 6x 2.5” (63.5 mm) full-range drivers
• 2x 2.5” (63.4 mm) passive radiators
• 20° symmetrical vertical coverage
• 130° horizontal coverage
• 75 Hz-15 kHz
• 119 dB SPL (peak)
• Lo-Z, 8 ohms, 200W program
• 70/100V

https://products.electrovoice.com/na/en/lrc-1060/

SPECIFICATIONS

• Frequency range (-10 dB) 1    70 Hz – 15,000 Hz
• Maximum sound pressure level at a distance of 1 m 2    119 dB
• Axial sensitivity 3    90 dB SPL 1W/1m
• Coverage angle HxV 4    130° x 20°
• Power handling (continuous) 5    100 W
• Power handling (program) 6    200 W
• Peak input voltage (Lo-Z)    80 V
• Nominal impedance (Lo-Z)    8 Ω
• Recommended high-pass    ≥70 Hz Butterworth, 24 dB/oct
• Transformer taps 70 V line    60 W; 30 W; 15 W; 8 W; 4 W
• Transformer taps 100 V line    60 W; 30 W; 15 W; 8 W
• Transducer (quantity) size    (6) 2.5 in active drivers
• (2) 2.5 in passive radiators
• Connector type    4-pin Euroblock
• Input + Pass through
• Wire size    12AWG (maximum)
• Suspension points    (2) M8
• Mounting    SwifTilt Multi-angle Tilt + Pan Bracket
• Maximum horizontal pan angle    +/- 80° (at all down-tilt angles)
• Vertical down-tilt angles 7    0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
• IP rating    FW (outdoor full exposure), IP55c
• Color    RAL 9004 Signal black /
• RAL 9003 Signal white
• Dimensions (H x W x D)    22.83 in x 4.13 in x 5.67 in
• Dimensions (H x W x D)    580 mm x 105 mm x 144 mm
• Weight    9.7 lb
• Weight    4.4 kg
• Shipping weight    14.33 lb
• Shipping weight    6.5 kg
