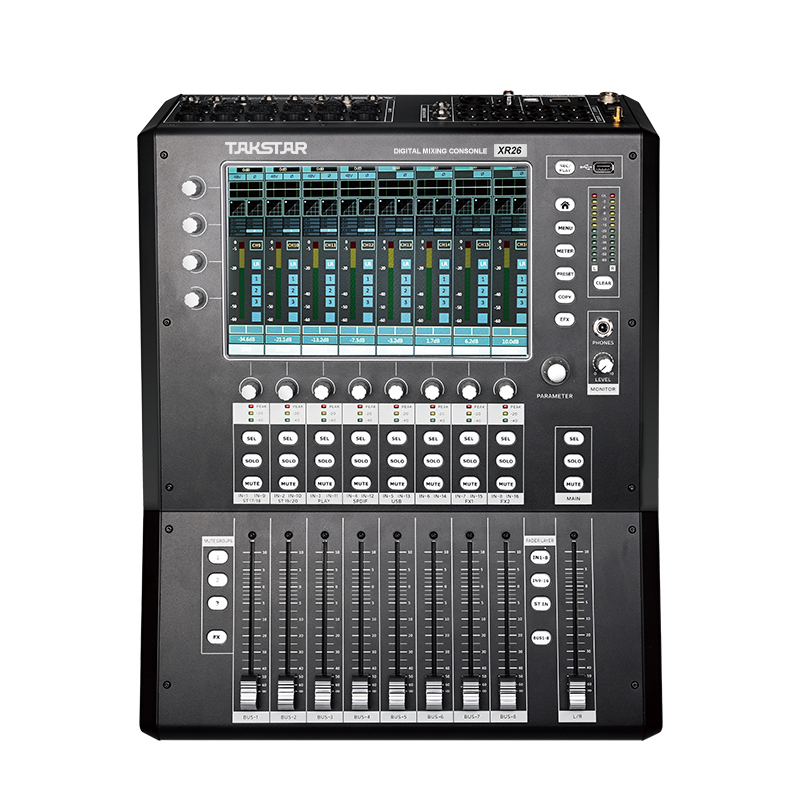

Digital Mixer Takstar XR26

Digital Mixer Takstar XR26

• 26-channel input includes: 12 microphone inputs, 2 stereo inputs, 3 digital stereo inputs (S /PDIF, USB sound card, USB playing).

• 12-circuit bus designs, 8-circuit BUS output channels, 1-circuit stereo main output, 3-circuit stereo digital outputs (S / PDIF + AES / EBU, USB sound card, USB recording).

• All microphone input channels have independent + 48V power supply and high-quality voice amplifier, and realize operation control through software.

• All input channels have independent low-cut, PEQ, compressor, noise reducer processing.

• All output channels have independent high and low cut, PEQ, compressor processing.

• The main output channel has independent 31-segment GEQ processing, which can support to send to the electric fader control in mirror mode.

• All input and output channels can be freely linked to stereo state.

• The names and colors of all channel labels can be customized.

• There are two built-in independent professional stereo effectors, with independent sending bus and multiple effect types to select.

• There is a built-in U disk player, which supports real-time stereo recording and play function.

• There is built-in USB sound card, which supports real-time recording and play function connected with PC.

• There are 3 programmable mute group buttons and 1 total effect mute group button.

• All input and output channels can support any free copy.

• It supports an unlimited number of user scene storage and invoking functions, and all scenes can be imported and exported via U disk.

• It has user-defined password protection function, which is effective for both local operation and mobile access.

• The 10-inch high-definition 1920 * 1080 capacitive touch screen supports multi-point touch operation.

• It has 9 high-precision 100MM electric faders and 4 page turning management buttons.

• The built-in web server based on HTML5 technology has built-in Wi-Fi hotspot, and the cross-platform supports access from various mobile terminals such as IOS, Android, Windows, etc., and supports multi-screen interaction and full-featured operation.

• Input channel: 26 channel input:12 channel microphone; 4 mono channel;2 stereo; 3 digital stereo
• Output channel: 12 channel output; Main output L/R; 6 BUS outputs;Monitor output /L/K; Headphone output L/R
• Recording interface:Dual-track USB sound card/Double-track U disk recording storage
• Input gain: Microphone gain -20~+70; Line gain -20~+20
• Input and output impedance: Microphone / line input: 5kΩ / Output: 200Ω
• Frequency Response: 20Hz~20kHz: +/-0.5
• Total Harmonic Distortion plus Noise THD+N: -20dBFS ＠ 1kHz: <0. 01%
• Noise: Noise level(20/20k band-pass): -85dBu
•            Noise level(A): -88 dBu
• Dynamic Range: -107dB
• Crosstalk:Isolation between channels(+4dBu lk) : -96dB
• Phase Difference:Phase difference between channels(+4dBu lk) : <0.1°
• Equivalent Noise:-122dBu
• Delay:< 3ms
• Sampling Frequency:48K
• USB:Maximum current: 500mA
• Phantom Power:+48V, Software control management
• Power:Power consumption (typical value): <65W
•            Voltage Range:100~240VAC
•            Auto-induction AC Frequency: 47~63Hz
• Operating Condition:Temperature range: -20 ~55  °C
• Effector:2 independent effector channels
•              Effect types include: Hall, Room, Plate, Church, Delay, Chorus FIanger
• Threshold:Threshold: -80~ 0dB
•                  Range : -80~ 0dB
•                  Attack : 1 ms~ 120 ms
•                  Release: 10ms ~ 4000 ms
•                  Hold: 1 ms~ 2000 ms
• Compressor:Threshold: -60dB~+0dB
•                      Ratio:1:1~ 1000:1
•                      Attack : 1 ms~ 120 ms
•                      Release: 10 ms ~ 4000 ms
•                      Hold: 1 ms~ 2000 ms
•                      Makeup Gain: -20dB~+20dB
•                      Controllable soft turning point
• Channel equalizer:4-band parametric equalizer:Frequency per frequency band : 20HZ~20kHz
•                               Q: 0.05~ 15; Gain: -20dB~+20dB; Types,optional: PEQ, HPF, LPF, HSF, LSF
• Channel filte:HP'F: 20Hz~20kHz; LPH: 20Hz~20kHz
• Parameter Equalizer:31 GEQ, 20Hz~20kHz> ±15dB
• Mute group:Three programmable mute group, 1 total effect mute group
