Controller 4 in 8 out SOUNDKING AP48

Controller 4 in 8 out SOUNDKING AP48

Đặc điểm nổi bật :

• AP48: 4 x 8 digital matrix processor, 4CH bal input, 8CH bal output
• 24bit 48kHz sampling rate
• AD/DA converter, 32bit DSP chip
• Input section includes 8 processing units - gain, mute, noise gate, high cut, low cut, 8 PEQ, phase, delay;
•  Output section includes 7 processing units - crossover, 5 PEQ, gain, mute, limit, phase, delay;
•  Free matrix distribution between all inputs and outputs
•  Crossover, gain and band width of all PEQ adjustable, type: peak, high shelving, low shelving
•  Type of all high/low cut filter and crossover: Butterworth, Linkwitz-Riley, Bessel, -6dB/Oct to -48dB/Oct slope, 20Hz~20kHz frequencies continuously adjustable
• Threshold, ratio, start time and recovery time of all limiter/compressor continuously adjustable
• Threshold, start time and recovery time of all noise gate continuously adjustable
• Maximum 682ms delay time for all delay module
•  Free copying of parameters between any channels
•  Built-in signal generator, pink/white noise output mode, 20Hz to 20kHz sine wave adjustable, signal amplitude adjustable
•  2x20 LCD screen, custom buttons with lamp, one button operation, easy and fast
• 32 user presets, each preset saved or called alone, password protection supported

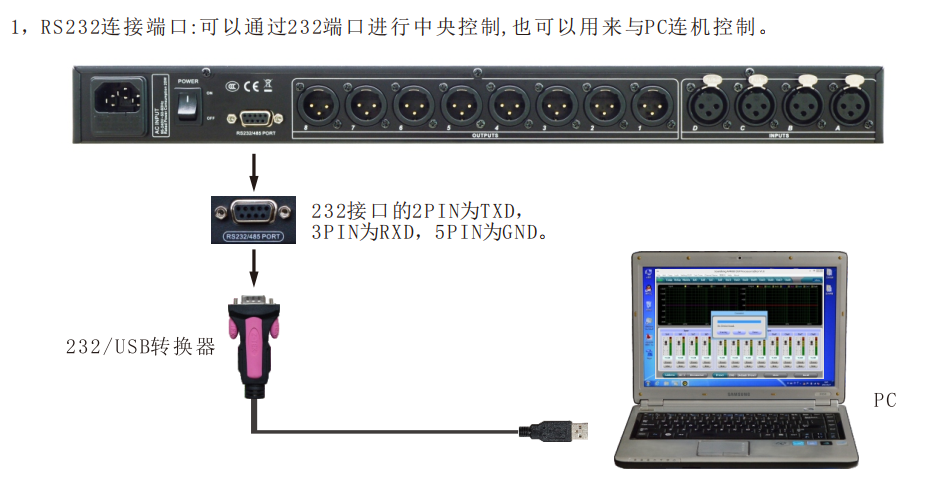

•  PC software remote control via USB or RS232

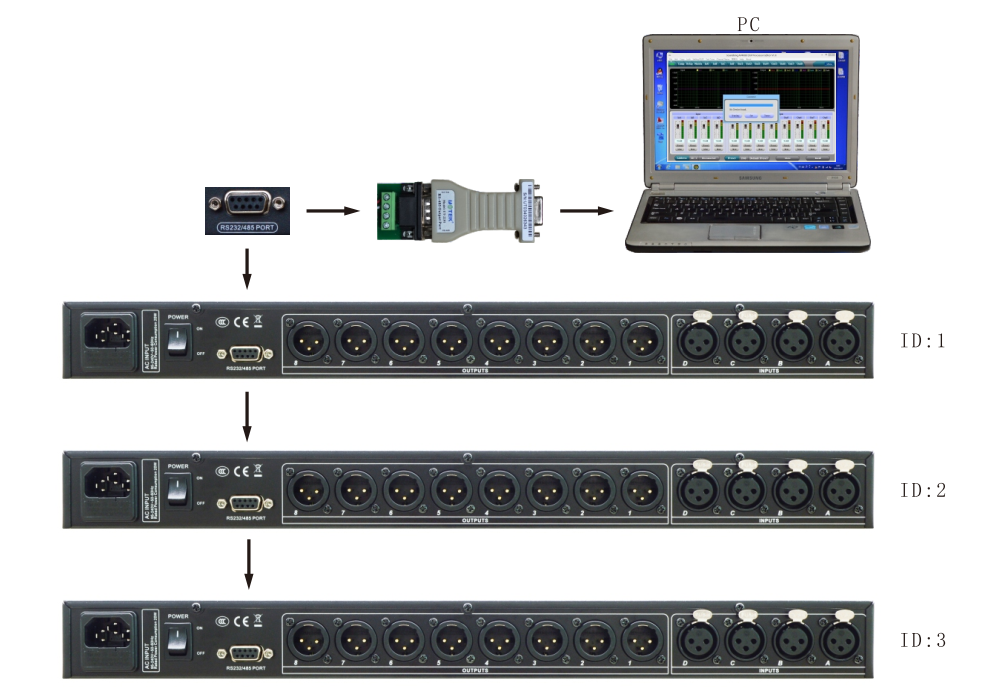

• Cascade control over as many as 256 units via RS485, remote network control by center control system supported.
