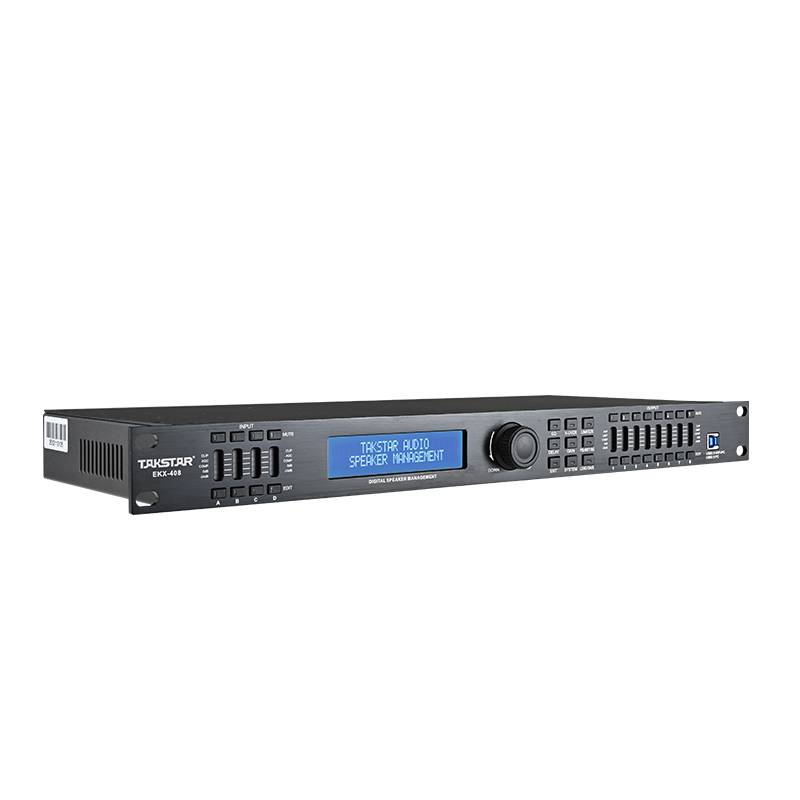

Controller 4 in 8 out Takstar EKX-408

Controller 4 in 8 out Takstar EKX-408

• 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter

• A variety of flexible configurations: 2in-4out, 2in-6out, 2in-8out, 3in-6out, 4in-6out, 4in-8out; HP/LP crossover can reach 20Hz~20KHz

• Provides USB 2.0, USB3.0, RS485 and TCP/IP interfaces for PC connection, in which the RS485 interface can connect up to 250 devices and be controlled over 1500 meters away via PC

• Convenient, intuitive and simple control on the panel or via PC software

• Store up to 30 sets of user programs locally

• Lock panel control with a password in SYSTEM setting to prevent parameter modification

• Each input/output has independent 6-band PEQ with five EQ modes: PEQ/Hi-Shelf/Lo-Shelf/APF-1st/APF-2nd, and has adjustable gain (±20dB)

• Each input channel has adjustable noise gate, two full-parameter adjustable dynamic equalization (DEQ) and automatic gain control

• 2 × 24 LCD blue backlight display, 5-segment LED input/output digital level meter, mute and edit status

• Each input/output has delay, phase control and mute settings; delay can be up to 1000ms, in unit of milliseconds(ms), meters(m), feet(ft), and be finely or coarsely tuned

• Output channel can also control compression and limiter, select input channel signal and copy all parameters of one channel to another channel and link channels

• Control the speaker matrix or mute channel via RS485 connected with central control system

• Password lock for input, output, and system settings to achieve data protection

• Able to connect to PC via external UTWR1 box and conduct remote control via Internet

• Input Channel & Socket: 4 XLR female
• Output Channel & Socket: 8 XLR male
• Input Impedance: Balanced: 20KΩ
• Output Impedance: Balanced: 100Ω
• PC Port: Front: 1 × USB2.0 (PC)/USB3.0 (WIFI/PC); rear: 1 × RS485 (Phoenix socket), 1 × TCP/IP (RJ45)
• CMRR: >53dB(1KHz)
• Input Range: ≤+15dBu
• Frequency Response: 19.7Hz-20KHz(±0.5dB)
• S/N Ratio: >88dB
• Distortion: <0.03% OUTPUT=0dBu/1KHz
• Channel Separation: >100dB(1KHz)
• Processor: 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter
• Display: 2 × 24 LCD blue backlight display, 5-segment LED input/output digital level meter, mute and edit status
• Power Consumption: 25W
• Power Supply: AC110V/220V 50/60Hz
• Product Size (W×D×H): 482×190×44mm
• Net Weight: 3.6kg
• Shipping Size (W×D×H): 1PC: 562X296X98mm/0.0163m3; 3PCS: 572X304X310mm/0.0539m3
• Gross Weight: 1PC: 4.5(kg); 6PCS: 28.5(kg)
