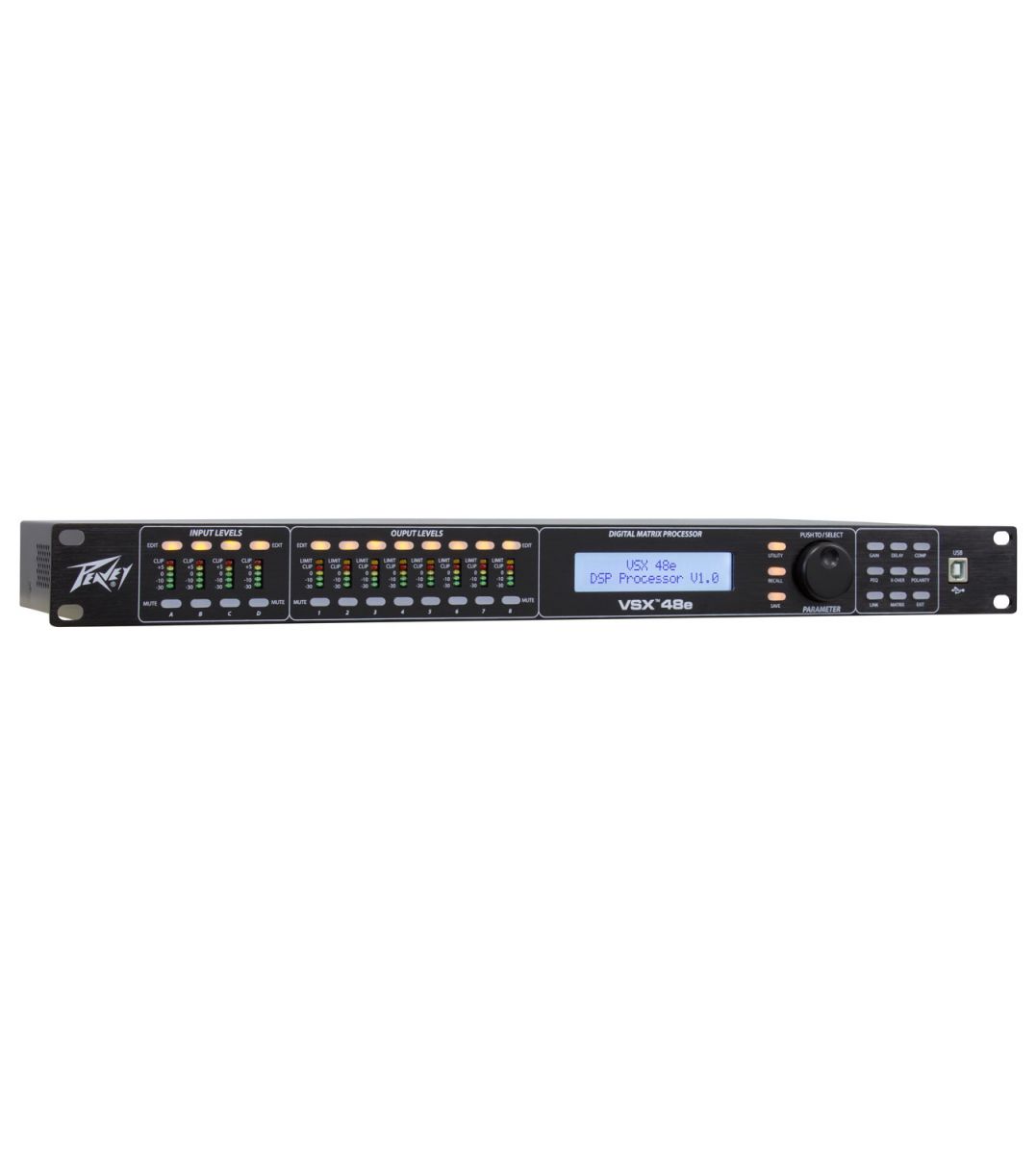

Peavey VSX™48e Contronller 4 in, 8 out DSP-based Loudspeaker Management System

Peavey VSX™48e Contronller 4 in, 8 out DSP-based Loudspeaker Management System

• Balanced Inputs: VSX 48e 4

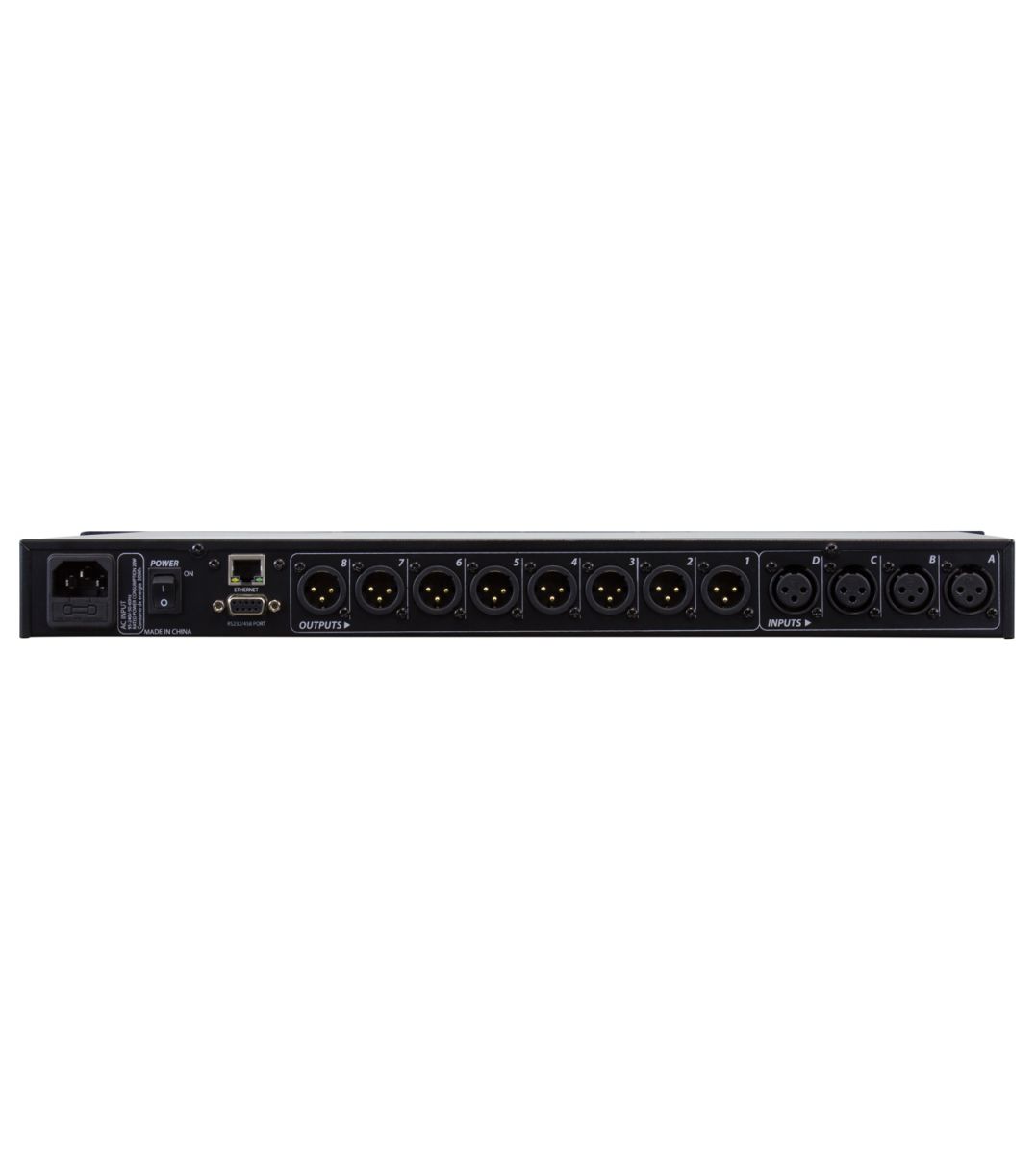

• 4 XLR balanced inputs and 8 XLR balanced outputs VSXe 48
• Maximum input and output level +20 dBu, XLR balanced inputs and outputs
• Frequency response 20 Hz to 20 kHz +0, -1 dB
• 5 segment LED meters with limit indication on each output
• Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and Delay (680 mS)
• Security lock
• Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)
• USB B port for setup and control
• 24 bit Delta-Sigma A/D and D/A converters
• Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay (680 mS), mute, and crossover/band-pass filters
• Ethernet port for setup and control
• Channels can be linked for simplified stereo operation
• 96 kHz Sample rate
• Signal generator (sine, white noise, pink noise)
• PC Editor Programs allow complete remote setup and operation via USB or Ethernet
• Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)
• Balanced Outputs: VSX 48e 8
• EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2
• 5 segment LED meters on each input
• THD+N < 0.01% at 1 kHz
• Weight Unpacked: 5.80 lb(2.63 kg)
• Weight Packed: 7.72 lb(3.5 kg)
• Width Packed: 11.69"(29.6926 cm)
• Height Packed: 21.14"(53.6956 cm)
• Depth Packed: 4.9"(12.446 cm)

Peavey VSX™48e Contronller 4 in, 8 out DSP-based Loudspeaker Management System

• Balanced Inputs: VSX 48e 4
• 4 XLR balanced inputs and 8 XLR balanced outputs VSXe 48
• Maximum input and output level +20 dBu, XLR balanced inputs and outputs
• Frequency response 20 Hz to 20 kHz +0, -1 dB
• 5 segment LED meters with limit indication on each output
• Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and Delay (680 mS)
• Security lock
• Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)
• USB B port for setup and control
• 24 bit Delta-Sigma A/D and D/A converters
• Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay (680 mS), mute, and crossover/band-pass filters
• Ethernet port for setup and control
• Channels can be linked for simplified stereo operation
• 96 kHz Sample rate
• Signal generator (sine, white noise, pink noise)
• PC Editor Programs allow complete remote setup and operation via USB or Ethernet
• Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)
• Balanced Outputs: VSX 48e 8
• EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2
• 5 segment LED meters on each input
• THD+N < 0.01% at 1 kHz
• Weight Unpacked: 5.80 lb(2.63 kg)
• Weight Packed: 7.72 lb(3.5 kg)
• Width Packed: 11.69"(29.6926 cm)
• Height Packed: 21.14"(53.6956 cm)
• Depth Packed: 4.9"(12.446 cm)
