DriveRack 260 DBX 3 input , 6 Out Loudspeaker Management System

Bộ phân tần số  3 in 6 out DriveRack 260

• 3 input , 6 Out
• Loudspeaker Management System Feedback Elimination
• 2.7 Seconds of Alignment and Zone Delay
• RS-232 PC GUI control
• Classic dbx Compression and Limiting
• Graphic and Parametric EQ
• Auto-EQ Function
• Full Bandpass, Crossover, and Routing Configurations
• Auto Gain Control
• Pink Noise Generator and fulltime RTA
• Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
• Security Lockout
• Wall Panel Control Inputs

• Input (2) line inputs. (1) RTA Mic input
• Input Connectors (2) Female XLR line inputs. XLR RTA Mic input
• Input Type Electronically balanced/RF filtered
• Input Impedance >40k ohm
• Max Input +30dBu with input jumpers in +30 position
• CMRR > 45dB
• Mic Preamp Phantom Power +15VDC (RTA)
• Mic Preamp Equivalent Input Noise (EIN) < -110dB, 22Hz-22kHz, 150 ohm (RTA)

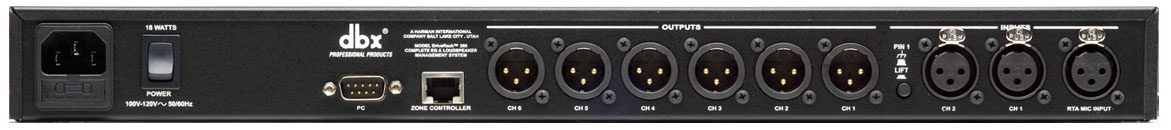

• Output 6 total
• Output Connectors Male XLR
• Output Type Electronically balanced, RF filtered
• Output Impedance 120ohm
• Max Output +22dBu
• A/D Converter dbx Type IV™ Conversion System
• A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
• Type IV Dynamic Range >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
• Sample Rate 48kHz
• D/A Dynamic Range 112 dB A-weighted, 109dB unweighted
• Dynamic Range >110 dB A-weighted, >107dB unweighted
• THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
• Frequency Response 20Hz – 20kHz, +/- 0.5dB
• Interchannel Crosstalk >110dB, 120dB typical, (input-to-output: >100dB)
