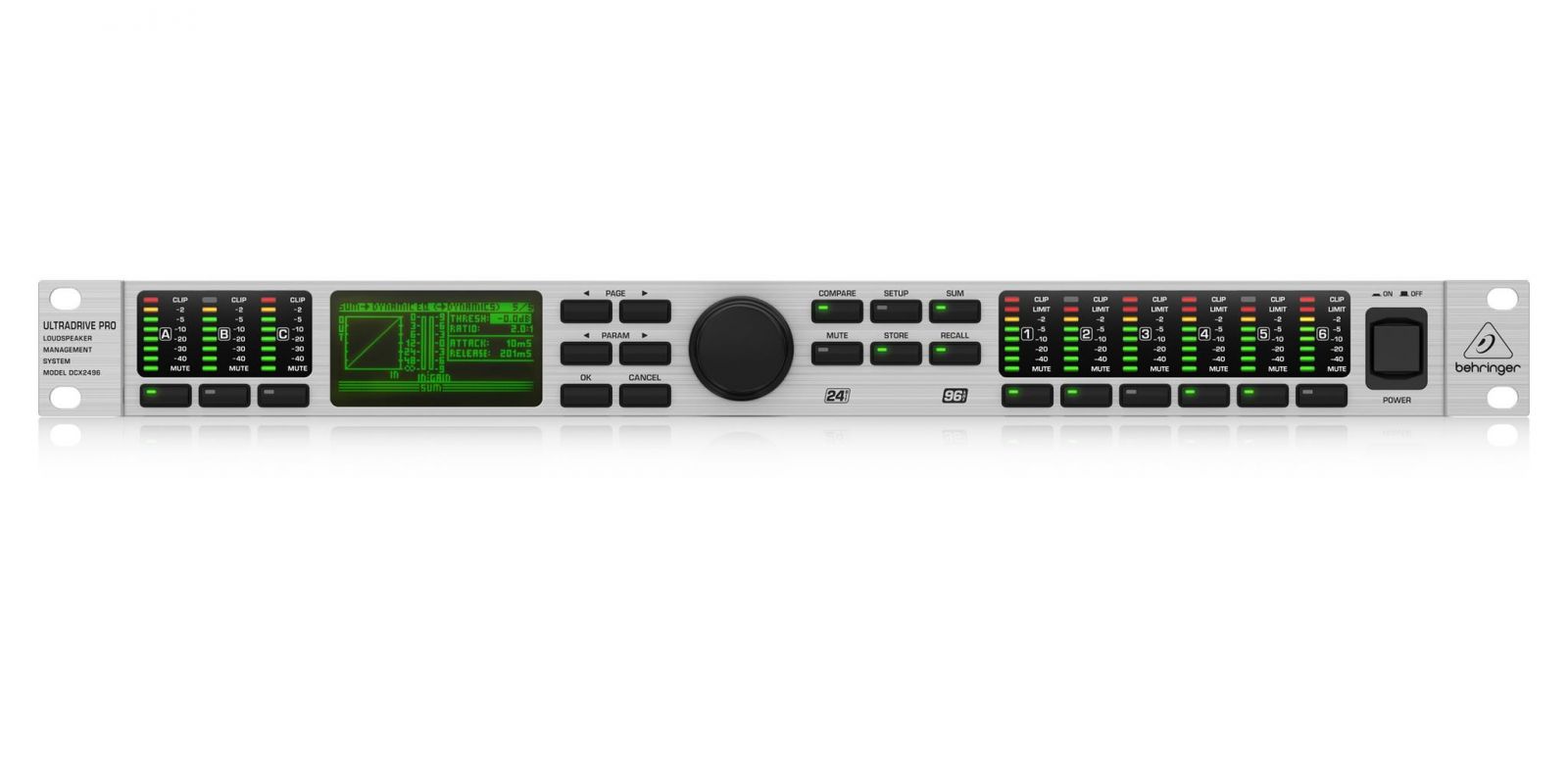

DCX2496 Bộ Crossover số Behringer

Bộ Crossover số Behringer DCX2496

• Ultra-High Precision Digital 24-Bit/96 kHz Loudspeaker Management System.
• 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility.
• High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB).
• Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz.
• Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs.
• Several types of EQs (LP/BP/HP) for each input and output.
• "Zero"-attack Limiters on all output channels for optimal speaker protection.
• Four different mono and stereo output operating modes.
• Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave.
• Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences.
• Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal.
• Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces.
• Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs.
• 60 user-defined internal presets storable.
• Servo-balanced, gold-plated XLR connectors for all inputs and outputs.
• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving.
• High-quality components and exceptionally rugged construction ensure long life

Specifications of BEHRINGER DCX2496

• Frequency Response: 10Hz to 35kHz, -1dB
• Dynamic Range: 109dB
• Input Connections: 3 x XLR
• Output Connections: 6 x XLR
• Input Impedance: 20kΩ @ 1kHz
• Output Impedance: 160Ω @ 1kHz
• Maximum Input Level: +22dBu
• Maximum Output Level: +22dBu
• Sample Rate: 32kHz to 96kHz
• RTA Mic Phantom Voltage: +15V
• Crosstalk (Main Outputs): -100dB @ 10dBu In
• THD & Noise: 0.007% @ 0dBu In
• Dimensions: 19" x 8.5 x 1.75" (483 x 217 x 45mm)
• Weight: 6.6 lbs (3 kg)
