Micro không dây SHURE BLX24R/B58

Micro không dây SHURE BLX24R/B58

Hệ Thống Không Dây Với Micro Vocal Beta58A
Micro vocal dynamic Beta 58A được thiết kế dành cho biểu diễn trực tiếp và thu âm trong phòng thu. Đáp ứng tần số được điều chỉnh giúp làm nổi bật giọng hát và búp hướng supercardioid tách biệt giọng hát khỏi các nguồn âm thanh khác. Hệ thống có thiết lập đơn giản và giao diện trực quan cho hiệu suất cao.

System

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX2

• Audio Input Level:

• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

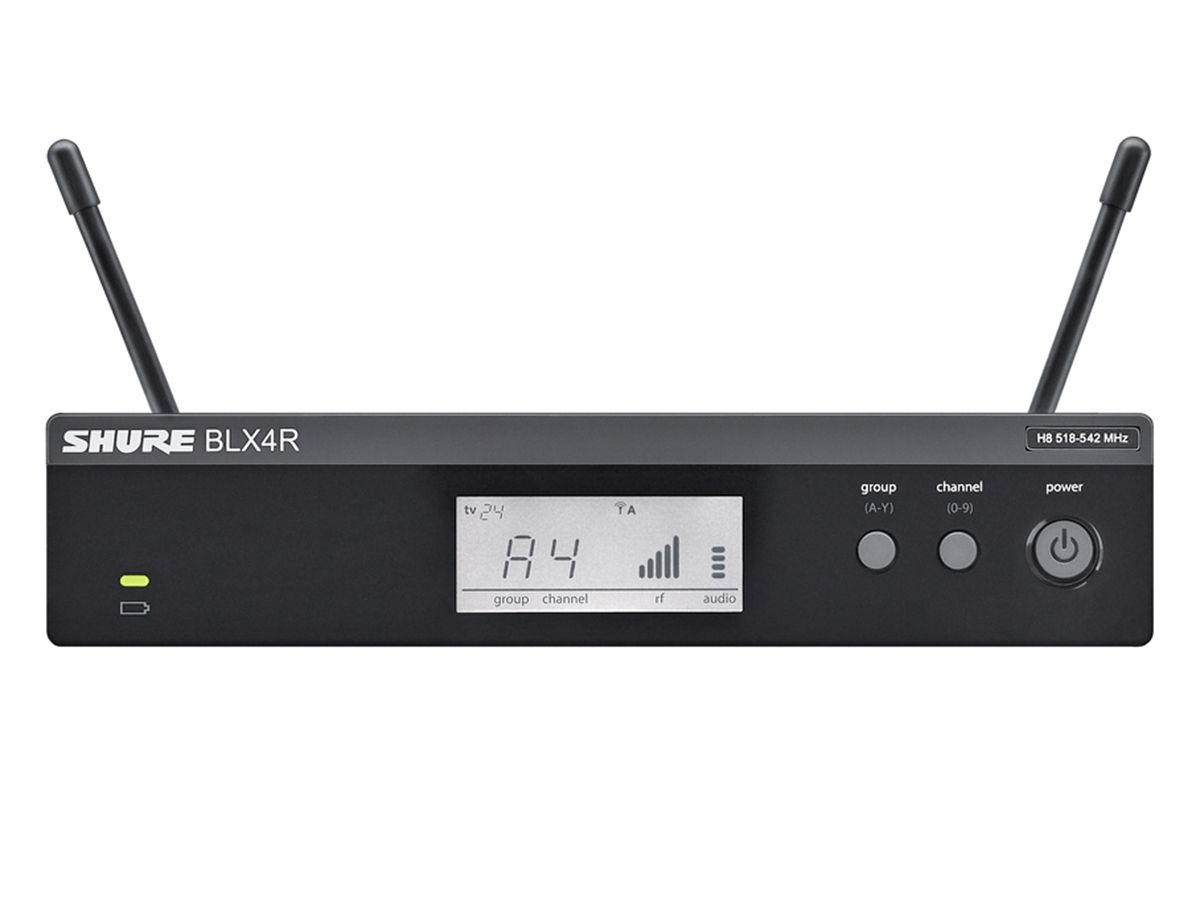

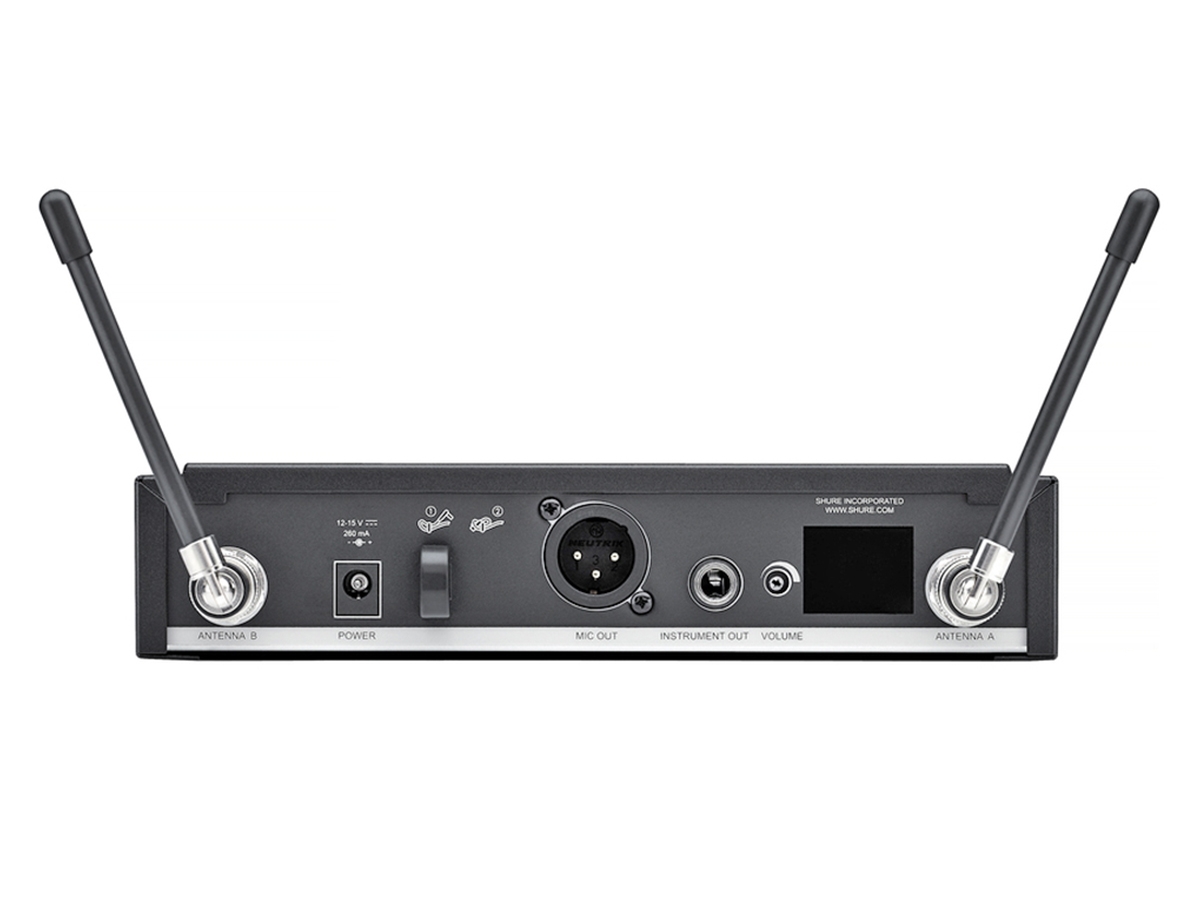

BLX4R

• Output Impedance:

• Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone)

• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
• Weight (without antennas): 2.2 lbs (998 g)
• Housing: Molded ABS, steel
• Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)

System

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX2

• Audio Input Level:

• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

BLX4R

• Output Impedance:

• Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone)

• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
• Weight (without antennas): 2.2 lbs (998 g)
• Housing: Molded ABS, steel
• Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
