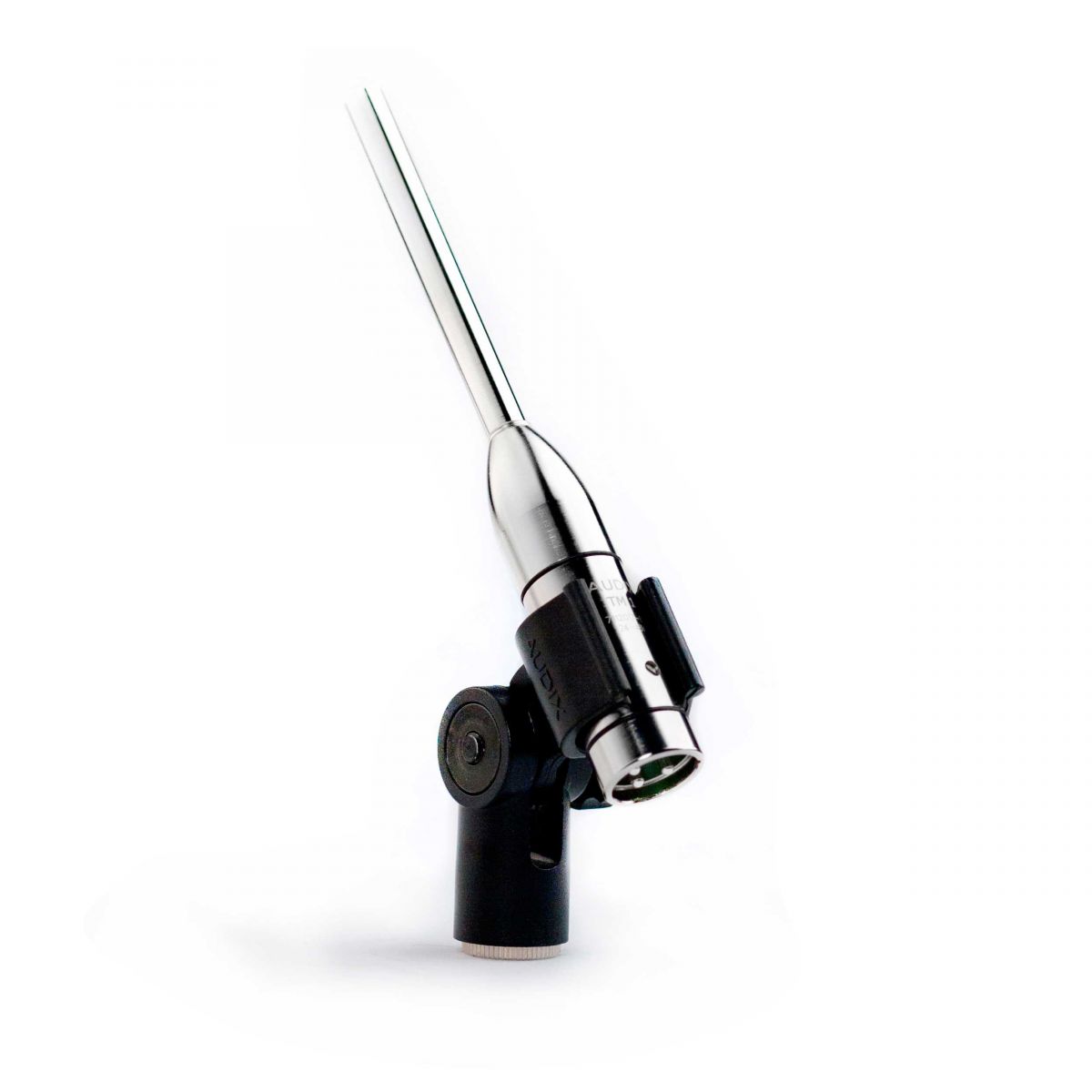

OMNI-DIRECTIONAL TEST AND MEASUREMENT MICROPHONE

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.

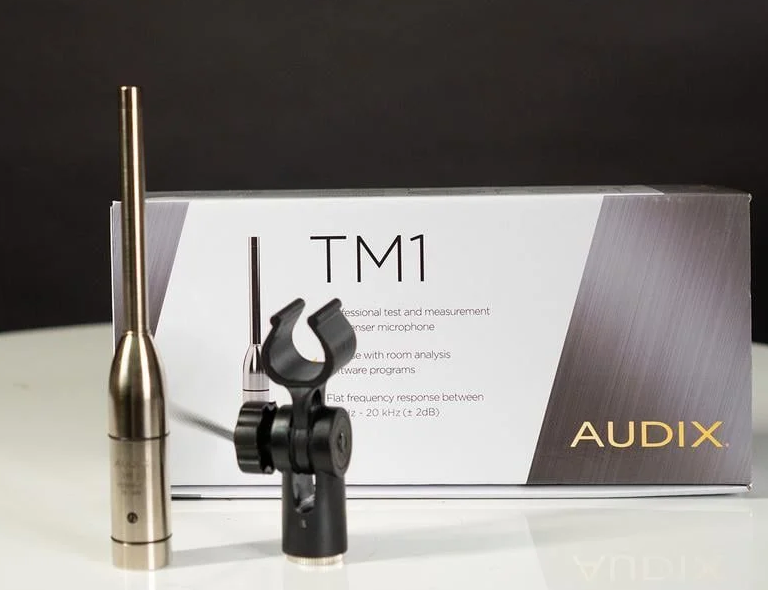

WHAT’S IN THE BOX?

• 1x TM1 Test & Measurement Microphone
• 1x DCLIP(opens a new window) Microphone Clip
• 1x Carrying Pouch

• Transducer Type    Pre-polarized Condenser
• Frequency Response    20 Hz – 20 kHz +/-2 dB
• Polar Pattern    Omni
• Output Impedance    200 ohms
• Sensitivity    6 mV / Pa @ 1k
• Equivalent Noise Level    28 dB (A weighted)
• Signal to Noise Ratio    66 dB
• Maximum SPL    130 dB with distortion <1% 140 dB Max
• Power Requirements    24 – 48 V Phantom
• Power Consumption    8.9 mA @ 48 Volts
• Connector    Switchcraft® or Audix male XLR
• Polarity    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish    4 piece precision machined brass / Nickel Finish
• Weight    132 g / 4.7 oz
• Length    150 mm / 5.9 in
