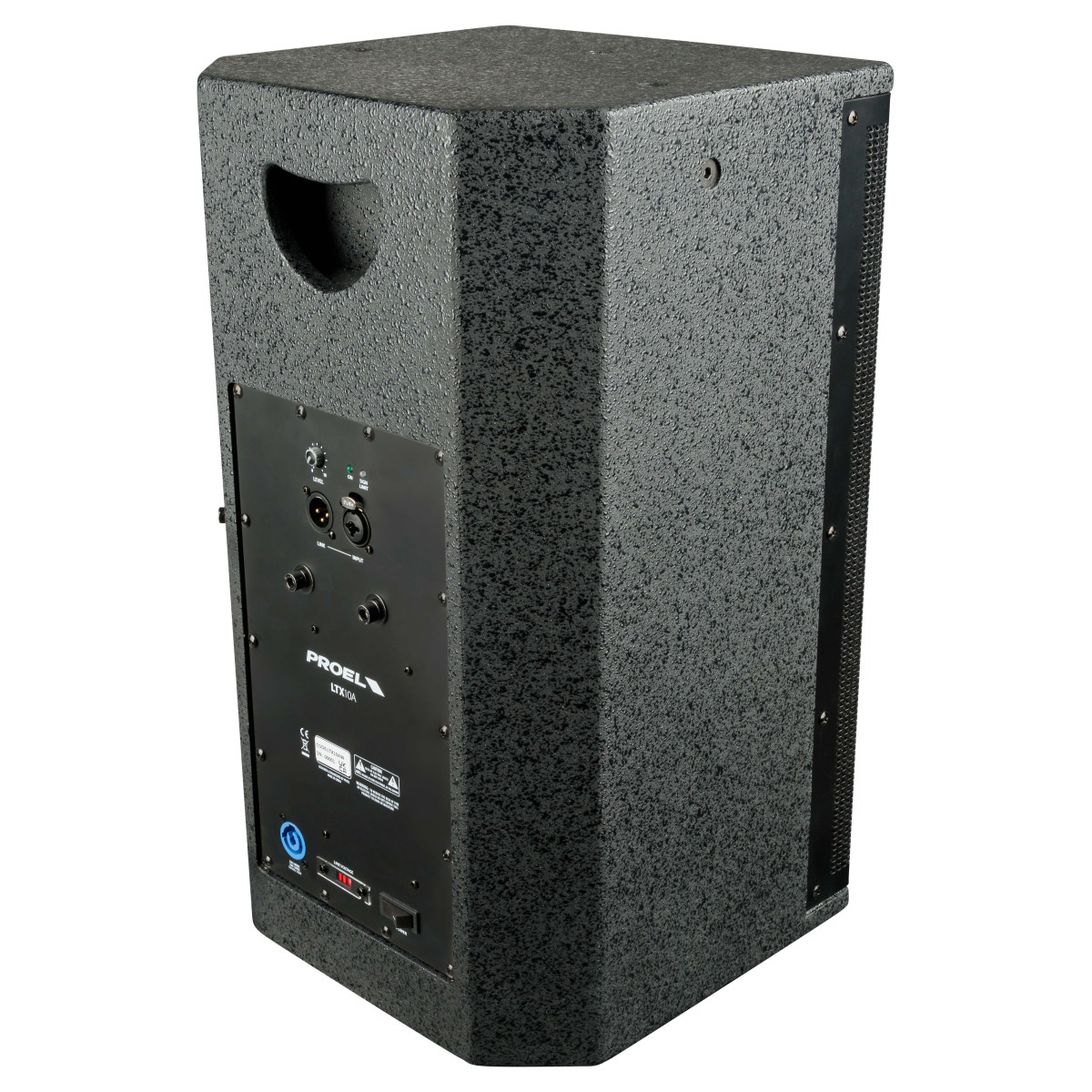

Loa full có công suất Proel LTX10A

2-WAY ACTIVE INSTALLATION SPEAKER
LTX is a complete series of active and passive speakers designed specifically for a a wide range of commercial and residential installations. The speaker systems are hosted in rugged plywood enclosures available in black or white and offering a refined and unobtrusive aesthetics, capable of fitting into any environment.

All the cabinets feature multiple suspension points and dedicated accessories for a wide choice of mounting options. The KPTLTP bracket (included with LTX6 and LTX8) allows to install the speakers on walls and ceiling with variable tilt and swivel speaker orientation, offering the possibility to obtain a more uniform coverage of the audience. The C-shape brackets (for LTX10 and LTX12 models) allow to mount the speaker on walls, ceiling and stage structures for unobtrusive installation. LTX8, LTX10 and LTX12 are fitted with a standard pole adapter that allows to use the speaker also as a portable audio system with a standard floor speaker stand.

For the high frequency reproduction we have designed symmetrical 90×90° dispersion horns, able to provide constant coverage for large audiences in both vertical and horizontal installations, and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offer an extended response with deep and tight basses.

The active versions are powered by amplifiers featuring the latest technologies for amplification, such as Switch Mode Power Supply and CLASS D output stages, and providing a massive amount of power with reduced size and weight. They include a sophisticated pre-amp section with up to 24 dB/oct. phase aligned crossover filters and active EQ filters for the system’s fine tuning, together with POWERCON mains connectors. The HF and LF independent LIMITER circuits ensure an undistorted sound even at the loudest level and a total loudspeaker protection.

Passive versions feature carefully designed linear phase crossover filters, HF protection circuits and SPEAKON connectors

• 1” compression driver
• 10” woofer
• 90° H x 90° V coverage
• 600 W peak power amplifier
• Frequency response 60 Hz – 20 kHz
• SPL max peak 123 dB

• System type    2-way vented enclosure
• High Frequency Device    1” compression driver with 1″ VC
• Low Frequency Device    10” woofer with 2” voice coil
• Angular Coverage    90° H x 90° V
• Total peak power    600 W
• HF Amplifier Continuous Power    50 W Class AB
• LF Amplifier Continuous Power    250 W Class D
• Power Supply    SMPS
• Processing    Analog
• Frequency Response    60 Hz – 20 kHz
• Max SPL    123 dB
• Connectors    IN: COMBO, LINK: XLR M
• Controls    LEVEL
• Flying System    4 x M8, 2 x M6
• Construction    Plywood
• Cabinet Colour    Black
• Handles    1 x rear
• Mounting Pole    1 x bottom
• Mounting Bracket    Tilt and Swivel bracket (optional)
• C-shape bracket (optional)
• Power Supply    230 or 115 VAC 50/60 Hz
• with LINE VOLTAGE selector
• Dimensions (W x H x D)    295 x 515 x 280 mm
• Weight    12.0 kg / 26.5 lbs
