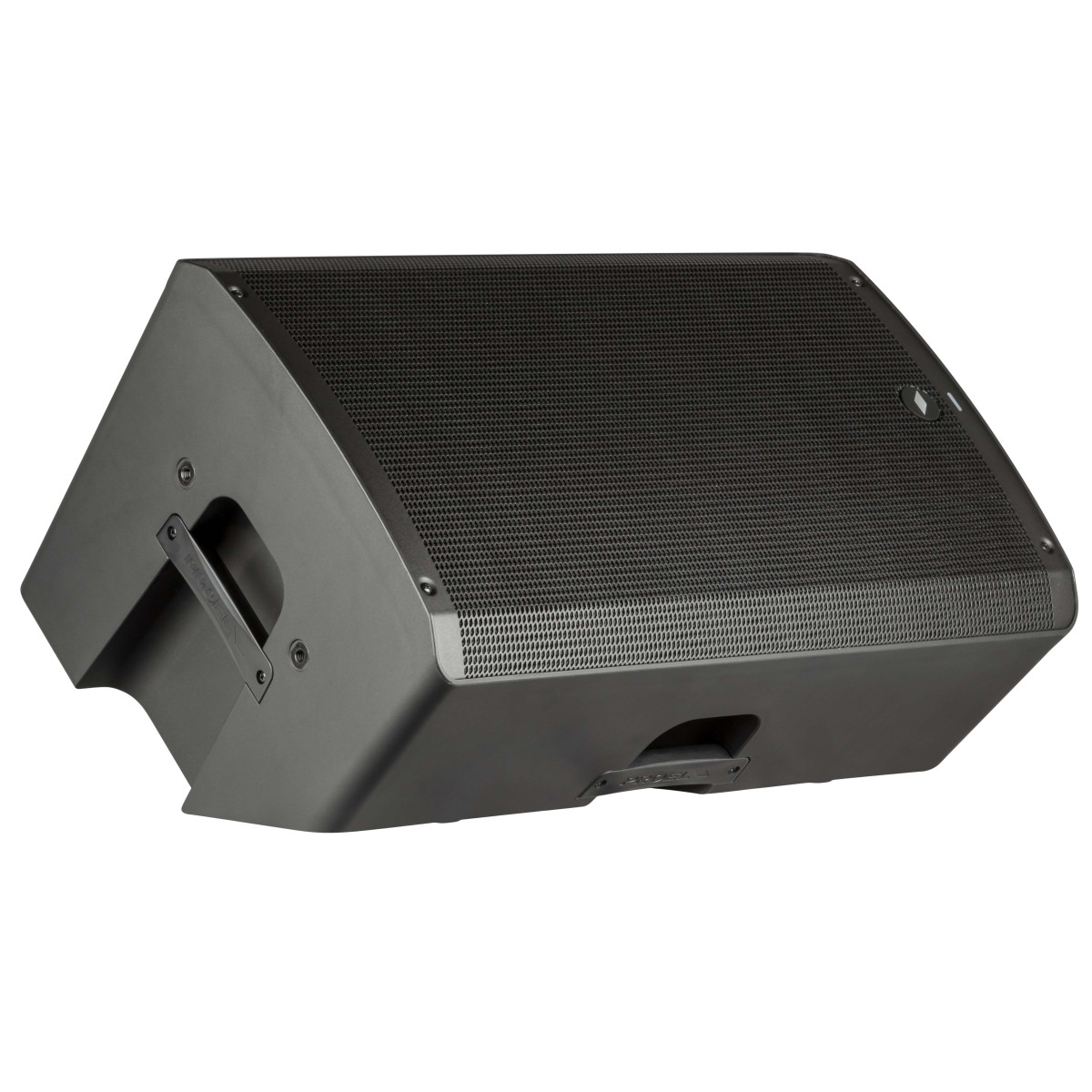

Loa full 4 tấc có công suất proel DIVA15A

1000W PROCESSED 12″ ACTIVE SPEAKER
DIVA12A and DIVA15A are digitally processed active loudspeaker systems featuring multiple inputs and a versatile BLUETOOTH connectivity.

Hosted in lightweight yet ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven with a powerful 1000W CLASS-D amplifier with SMPS, featuring high headroom and an accurate dynamic control for the maximum undistorted output power.

The sophisticated pre-amp section includes an advanced processing with high-performance DSP engine and linear phase FIR filters, for a very smooth response and high-definition sound. An intuitive user’s interface with LCD color display and single-knob control is available for a quick selection and display of the 5 available EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH), allowing the speakers to be perfectly adapted to any kind of application. Thanks to the built-in 3-channel mixer with MIC/GUITAR/LINE input selection, HIGH and LOW EQ controls and two WIRELESS USB inputs for the use of PROEL U24 microphone systems, the DIVA12A and DIVA15A can be used in a variety of applications also without external equipment.

The BLUETOOTH interface allows to reproduce audio in mono streaming with a single speaker or in stereo streaming with two speakers and the STEREO LINK (TWS) function.

• 2-way active processed loudspeaker system
• 1” high-definition compression driver with 1.35” VC and titanium diaphragm
• Wide-coverage 90° x 60° constant directivity horn
• 15” long-excursion woofer with 2,5” voice coil
• High-efficiency 1000 W peak Class D power amplifier with SMPS
• Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
• High-definition DSP with 24-bit converters and FIR filters
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• BLUETOOTH audio interface with STEREO LINK
• Color LCD display for the DSP editing
• SPL MAX: 129 dB
• Frequency response: 45 Hz – 20 kHz
• Lightweight, compact and ultra-durable PP cabinet
• 2 ergonomic handles for effortless transportation
• Slanted shape for the use as a stage monitor
• Four M10 flying points

• System type    2-way vented enclosure

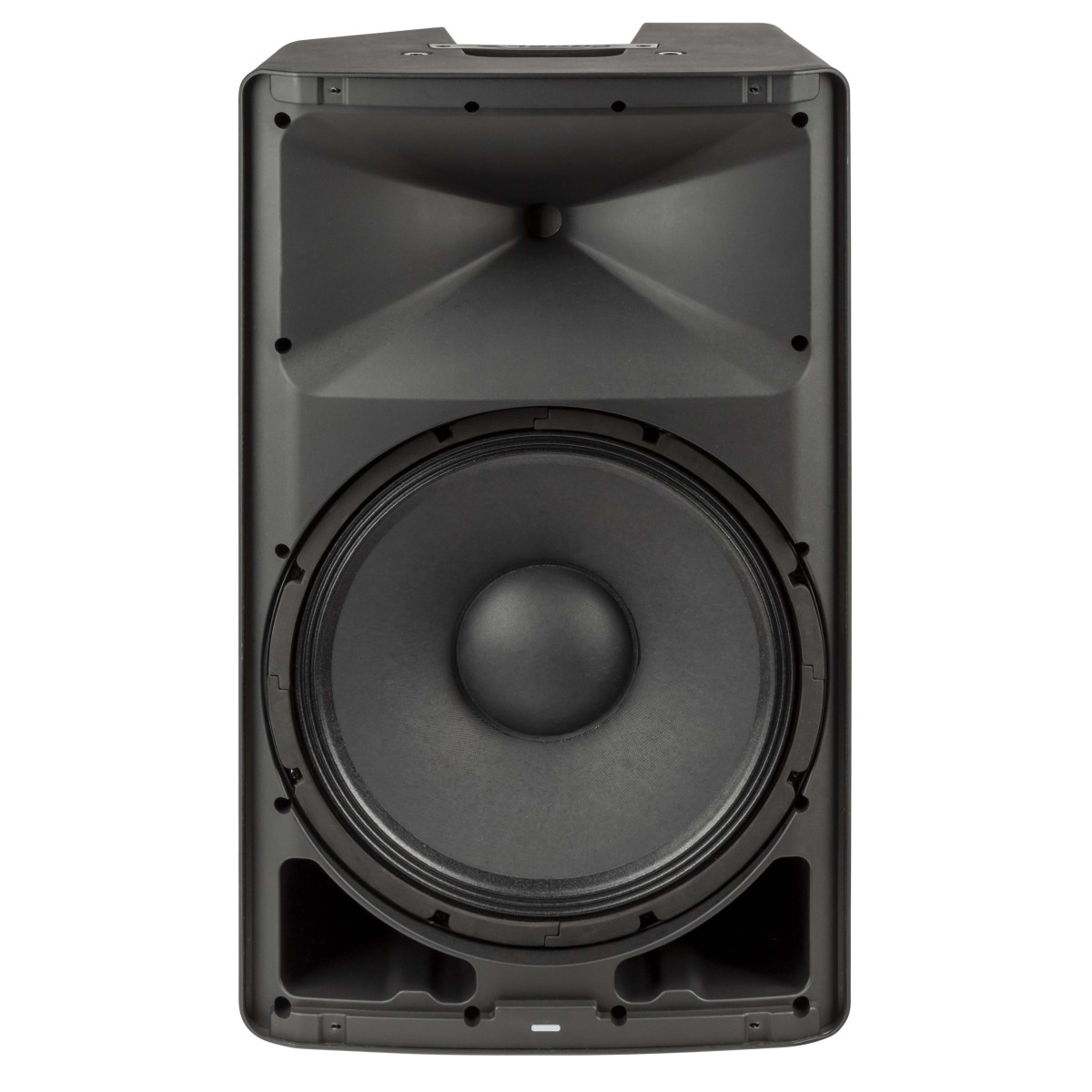

• High Frequency Device    1’’ compression driver with 1.35″ voice coil and titanium diaphragm
• Low Frequency Device    15″ woofer with 2.5″ VC
• Angular Coverage    90° H x 60° V
• Total Peak Power    1000 W
• HF Amplifier Continuous Power    100 W Class AB
• LF Amplifier Continuous Power    400 W Class D
• Power Supply    SMPS
• System Processing    DSP
• Frequency Response45    45 Hz – 20 kHz
• Max SPL    129 dB

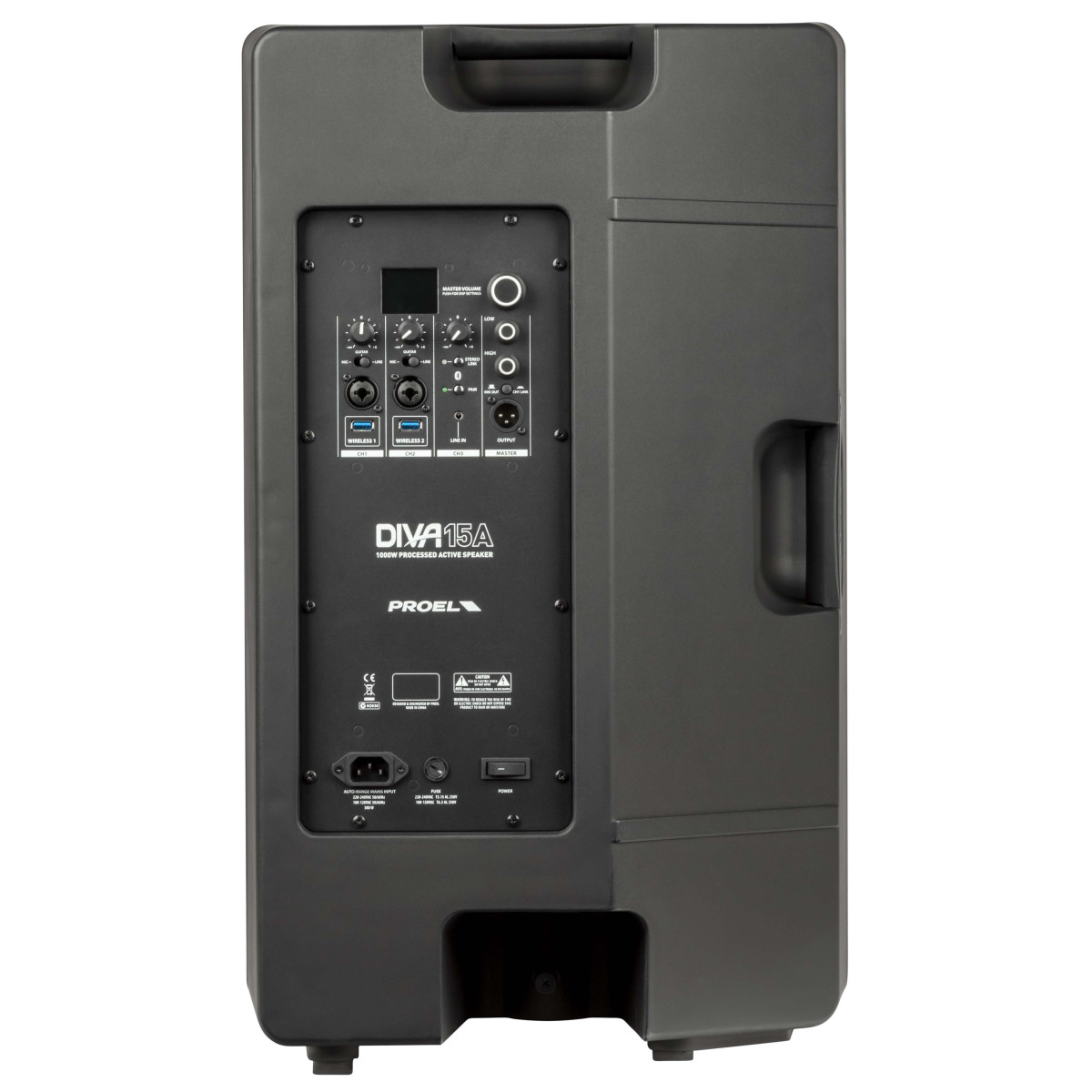

• Inputs    2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS
• Outputs    1 x selectable MIX OUT / CH1 LINK (M-XLR)
• Controls    CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD
• Bluetooth    Version 5.0, Audio Streaming, STEREO LINK (TWS)
• Power Supply    100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch
• Rated Consumption*    300 W
• Floor Monitor Angle    45°
• Flying System    4 x M10 – top/bottom
• Cabinet Material    Polypropylene
• Handles    1 x top, 1 x side
• Mounting Pole    1 x bottom
• Dimensions (W x H x D)    421 x 696 x 382 mm
• Weight    19.0 kg (41.8 lb)
