| Input Connectors |
1/4" TRS, female XLR (pin 2 hot) |
| Input Impedance |
>50kΩ balanced, >25kΩ unbalanced |
| Max Input |
>+24dBu, Balanced or Unbalanced |
| Input Type |
Electronically balanced/unbalanced, RF filtered |
| Sidechain |
1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return) |
| Sidechain Impedance |
Tip = >10kΩ (Input), Ring = 2kΩ (Output) |
| Sidechain Max Input Level |
>+20dBu (tip/input); >+20dBu (ring/output) |

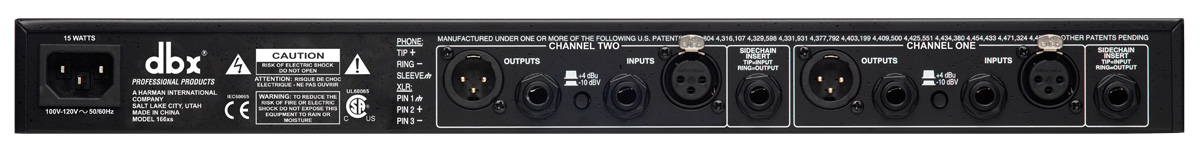

| Output Connectors |
1/4" TRS, male XLR (pin 2 hot) |
| Output Impedance |
120Ω balanced, >60Ω unbalanced |
| Max Output |
+21dBu balanced/unbalanced into 2kΩ or greater; >+18 dBm balanced/unbalanced (into 600Ω) |
| Frequency Response |
20Hz - 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain |
| Noise |
<-90dBu, 22Hz to 22kHz, no weighting, unity gain |
| THD+Noise |
Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz |
| IMD |
Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction) |
| Compressor Threshold Range |
-40dBu to +20dBu |
| Compressor Threshold Characteristic |
Selectable OverEasy® or hard knee |
| Compressor Ratio |
Variable; 1:1 to Infinity:1; 60dB Maximum Compression |
| Compressor Attack Time |
Variable program-dependent; 3ms to 340ms for 15dB gain reduction |
| Compressor Release Time |
Variable program-dependent; 200dB/Sec to 3dB/Sec |
| Expander/Gate Threshold Range |
OFF to +15dBu |
| Expander/Gate Ratio |
10:1 |
| Expander/Gate Max Depth |
>60dB |
| Expander/Gate Attack Time |
<500µs (from Maximum Depth) |
| Expander/Gate Release Time |
Adjustable, 30ms to 3sec (to 30dB attenuation) |
| Limiter Threshold Range |
0dBu to +20dBu |
| CMRR |
>40dB, typically >55dB at 1kHz |
| Interchannel Crosstalk |
<-80dB, 20Hz to 20kHz |
| Dynamic Range |
>115 dB, unweighted |
| Stereo Coupling |
True RMS Power Summing™ |
| Power Consumption |
15 Watts Maximum |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Dimensions |
1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm) |
| Unit Weight |
5.05 lb (2.29 kg) |
| Shipping Weight |
7.20 lb (3.27 kg) |
| Reference |
0dBu = 0.775Vrms |
| Operating Voltage |
100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz |
